Chrome Plated Brass Skin Fittings with Tails.
\n
\nSuitable for use as waste holding tank vent termination to the hull sides.
\n
\n
\n

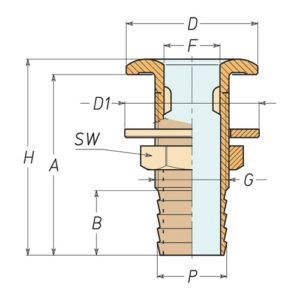

\n3/4" BSP x 19mm Tail: H = 90mm, D = 44mm, D1 = 39mm, A = 85mm, F = 20mm, B = 35mm, P = 19mm
\n1" BSP x 25mm Tail: H = 93mm, D = 54mm, D1 = 44mm, A = 88mm, F = 27mm, B = 32mm, P = 25mm
\n1 1/2" x 38mm Tail: H = 102mm, D = 72mm, D1 = 65mm, A = 97mm, F = 39mm, B = 35mm, P = 38mm
\n
\n3/4" BSP x 19mm Tail: H = 90mm, D = 44mm, D1 = 39mm, A = 85mm, F = 20mm, B = 35mm, P = 19mm
\n1" BSP x 25mm Tail: H = 93mm, D = 54mm, D1 = 44mm, A = 88mm, F = 27mm, B = 32mm, P = 25mm
\n1 1/2" x 38mm Tail: H = 102mm, D = 72mm, D1 = 65mm, A = 97mm, F = 39mm, B = 35mm, P = 38mm
