The Headmaster is an extremely reliable, attractive and comfortable porcelain marine toilet, with all the styling of a domestic model.
\nThe straight back, contemporary design cleverly conceals all the plumbing and the macerator mechanism to give a clean and smart apperance to your on-board bathroom.
\nTwo user controllable settings help manage your water consumption. The "Normal" button allows you to add flushing water and evacuate the toilet bowl at the same time.
\nThe "Dry Bowl" buttons allow you to either add more water or empty the bowl for dry bowl sailing when under way.
\n
\nWater Pressure: 20 - 45 PSI
\nWater Connection: 1/2" BSP
\nWaste Outlet: 1 1/2" (38mm)
\nMax Horizontal Run: 30 metres
\nMax Verticle Head: 3 metres
\nWeight: 26.5kg
\nElectric Consuption: 12 volt 20 amps - 24 volt 10 amps
\nElectric Circuit breaker: 12 volt 25 amps - 24 volt 15 amps
\n
\n
\n
\n
\n

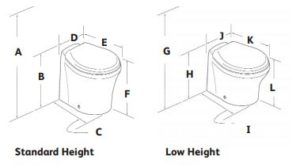

\nA = 851mm (33 1/2")
\nB = 457mm (18")
\nC = 406mm (16")
\nD = 375mm (14 3/4")
\nE = 502mm (19 3/4")
\nF = 432mm (17")
\nG = 775mm (30 1/2")
\nH = 381mm (15 1/2")
\nI = 391mm (15 1/2")
\nJ = 375mm (14 3/4")
\nK = 502mm (19 3/4")
\nL = 356mm (14")
\n
\nPanel Size: 75mm (3") Wide, 85mm (3 1/4")
\n
\nA = 851mm (33 1/2")
\nB = 457mm (18")
\nC = 406mm (16")
\nD = 375mm (14 3/4")
\nE = 502mm (19 3/4")
\nF = 432mm (17")
\nG = 775mm (30 1/2")
\nH = 381mm (15 1/2")
\nI = 391mm (15 1/2")
\nJ = 375mm (14 3/4")
\nK = 502mm (19 3/4")
\nL = 356mm (14")
\n
\nPanel Size: 75mm (3") Wide, 85mm (3 1/4")
